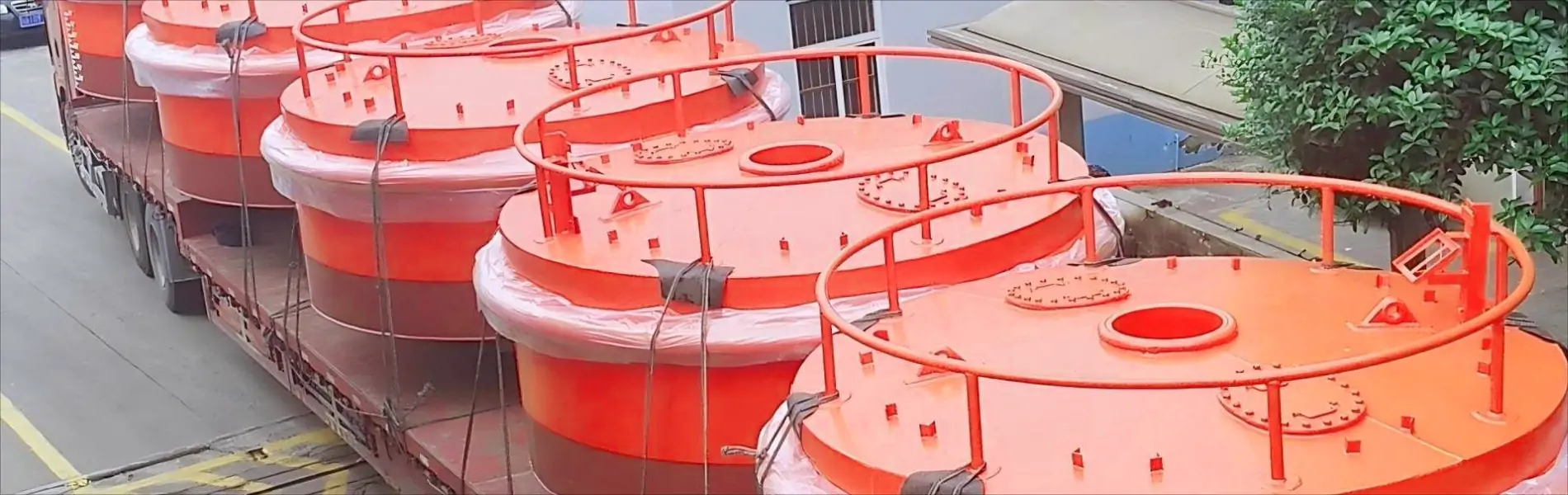

Steel Mooring Buoys Description

Jerryborg offers a wide variety of mooring buoys. These buoys can provide additional docking space by anchoring a vessel or watercraft in the middle of the water or near a dock. They can keep a vessel safely anchored and prevent it from drifting. They can also provide transient vessels with a place to dock in an adjacent harbor when they are not eligible for docking at a marina. Jerryborg mooring buoys are compliant with all industry regulations and Coast Guard requirements.

문의하기
Steel Mooring Buoys Description

Steel Mooring Buoys Features

special-Steel-Mooring-Buoys
  • Stable and Reliable: Stays steady in rough waters, keeping everything secure.
  • Long-Lasting: Made from strong materials, built to last for years.
  • Easy to Set Up and Take Care of: It is quick to install and simple to maintain, saving time and effort.
  • Safe to Use: Designed with safety in mind, it works well in any marine environment.
  • Environmentally Friendly: Made with eco-friendly materials, helping protect the ocean.
  • Strong Wind Resistance: Handles high winds without tipping, keeping it steady in bad weather.
  • Affordable and Practical: A good value choice that gets the job done without high costs.

Steel Mooring Buoys Construction

Outer Shell: The outside is thick steel, covered with a special coating to prevent rust in seawater.

폼 코어: Inside, foam keeps the buoy floating even if the outer shell is damaged.

Attachment Points: Strong points on the top and bottom for connecting anchor chains keep the buoy in place.

Weight at the Bottom: Some buoys have weight at the bottom to help them stand upright in strong currents or winds.

Lifting Points: These are for easy handling, so the buoy can be moved with cranes.

Reflectors or Lights: Often added for visibility at night or in foggy weather, making the buoy easy to spot.

Steel Mooring Buoy Specification


Type
부력

(without   chain)

(t)
Diameter   x Height (m)
Chain   Diameter (mm)
Lifting   Bye (mm)
Recommend   Sinker (t)
Mooring   Shackle (mm)
Suitable   for Ship Tonnage (t)

SMB2.0-D1
3
Ф2.0×1.74
Ф62
Ф45
4
Ф90
<2000

SMB2.6-D1
6
Ф2.6×2.27
Ф70
Ф45
6
Ф90
<5000

SMB3.6-D1
19
Ф3.6×2.14
Ф90-122
Ф50
8
Ф140
<10000

SMB5.0-D1
28.5
Ф5.0×3.4
Ф122
Ф60
12
Ф140
<12000

SMB5.5-D1
31.2
Ф5.5×3.0
Ф122



<100000

SMB6.0-D1
34.2
Ф6.0×3.2
Ф122



<150000

SMB8.0-D1
40.3
Ф8.0×2.46
Ф122
Ф100
120
Ф170
<250000
